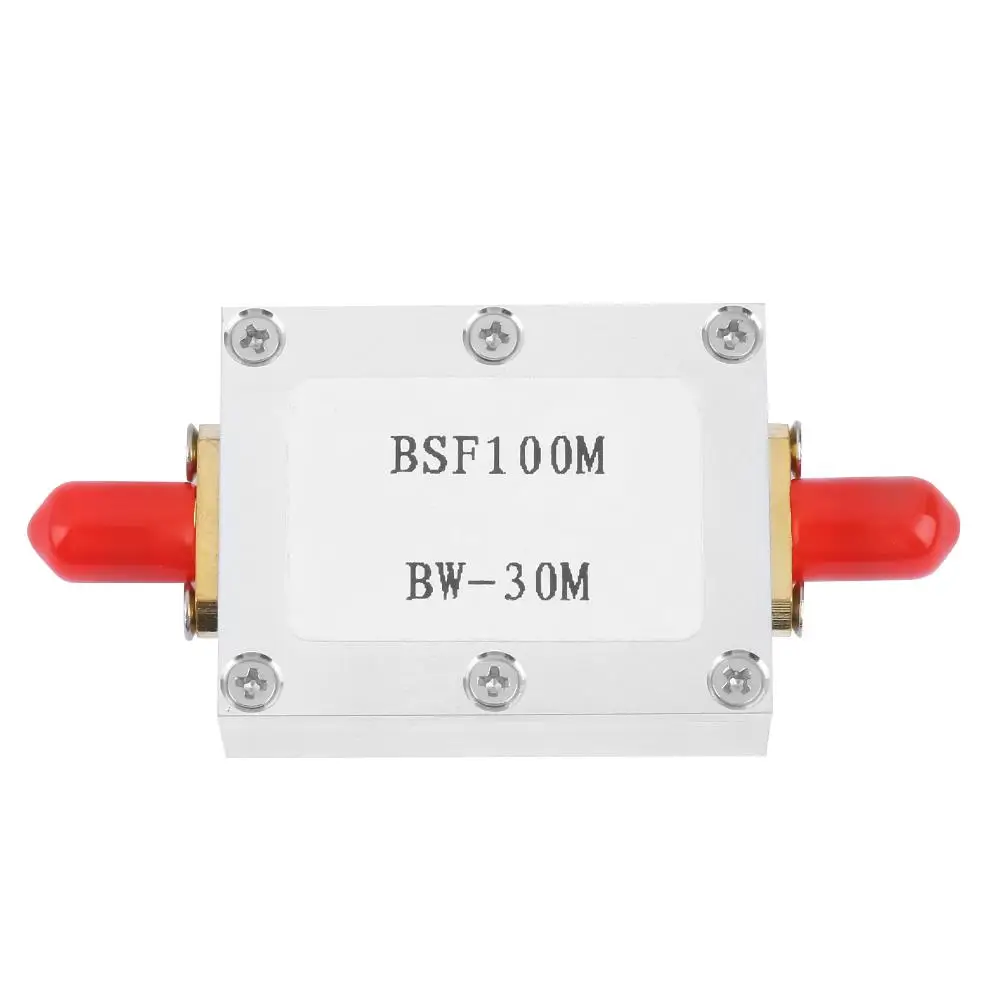

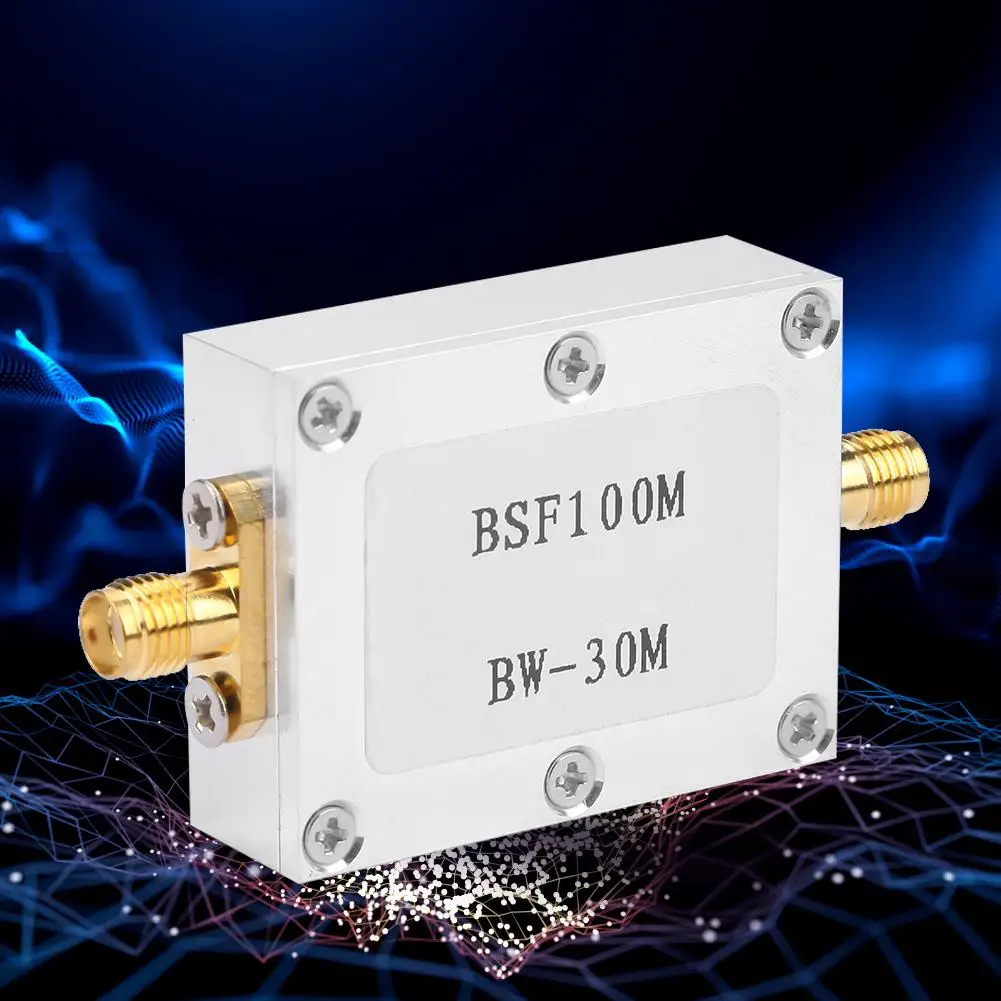

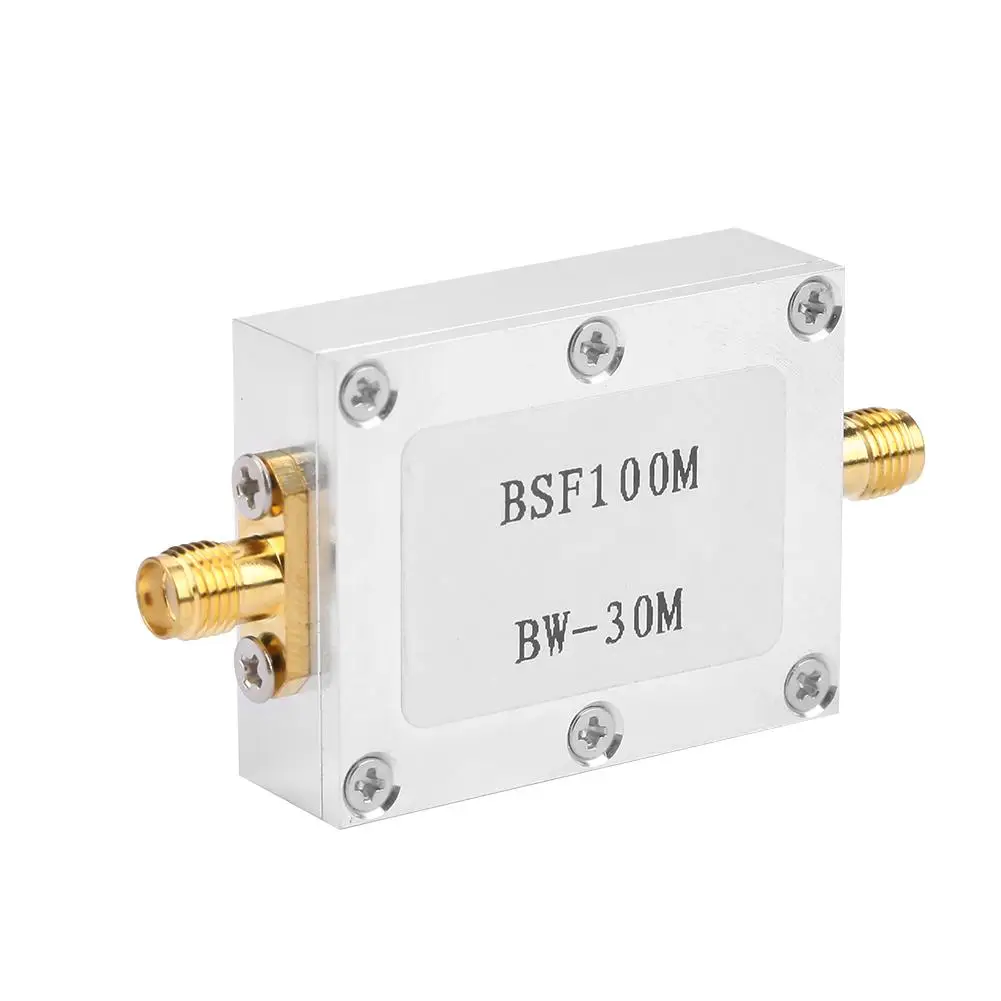

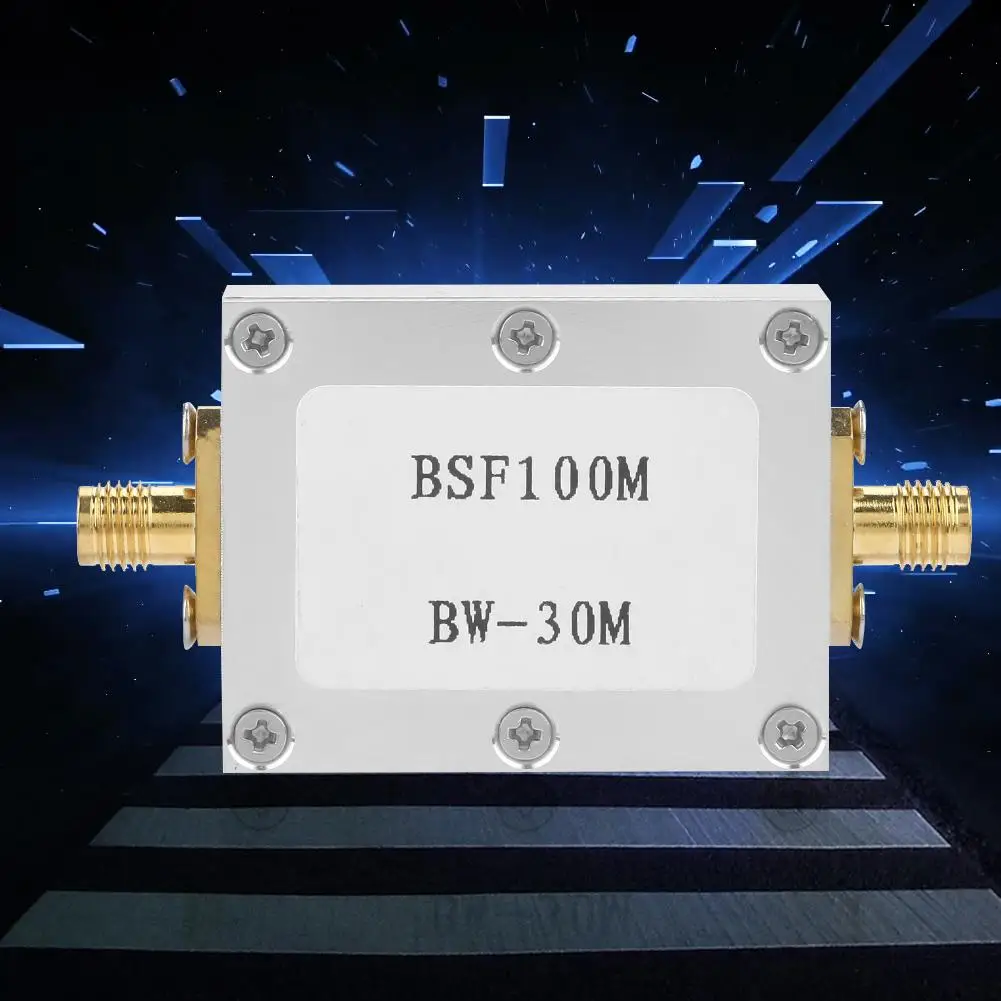

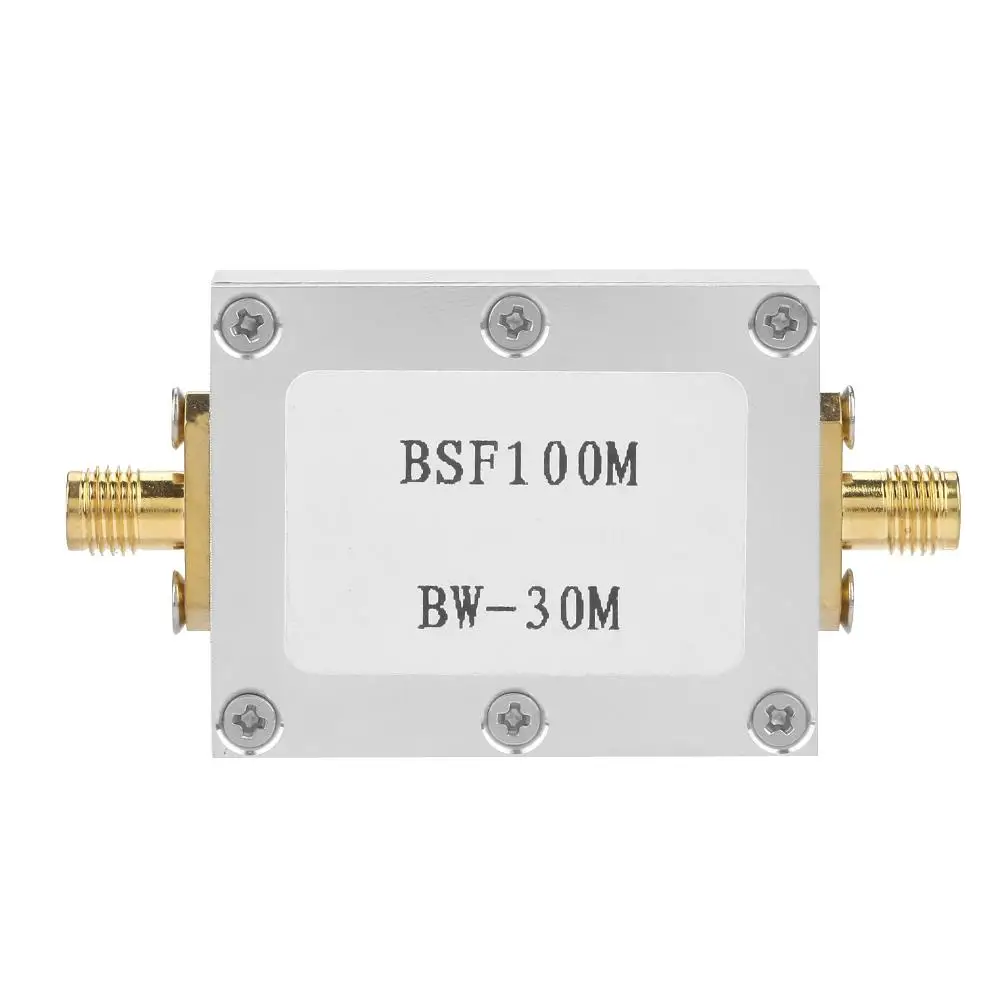

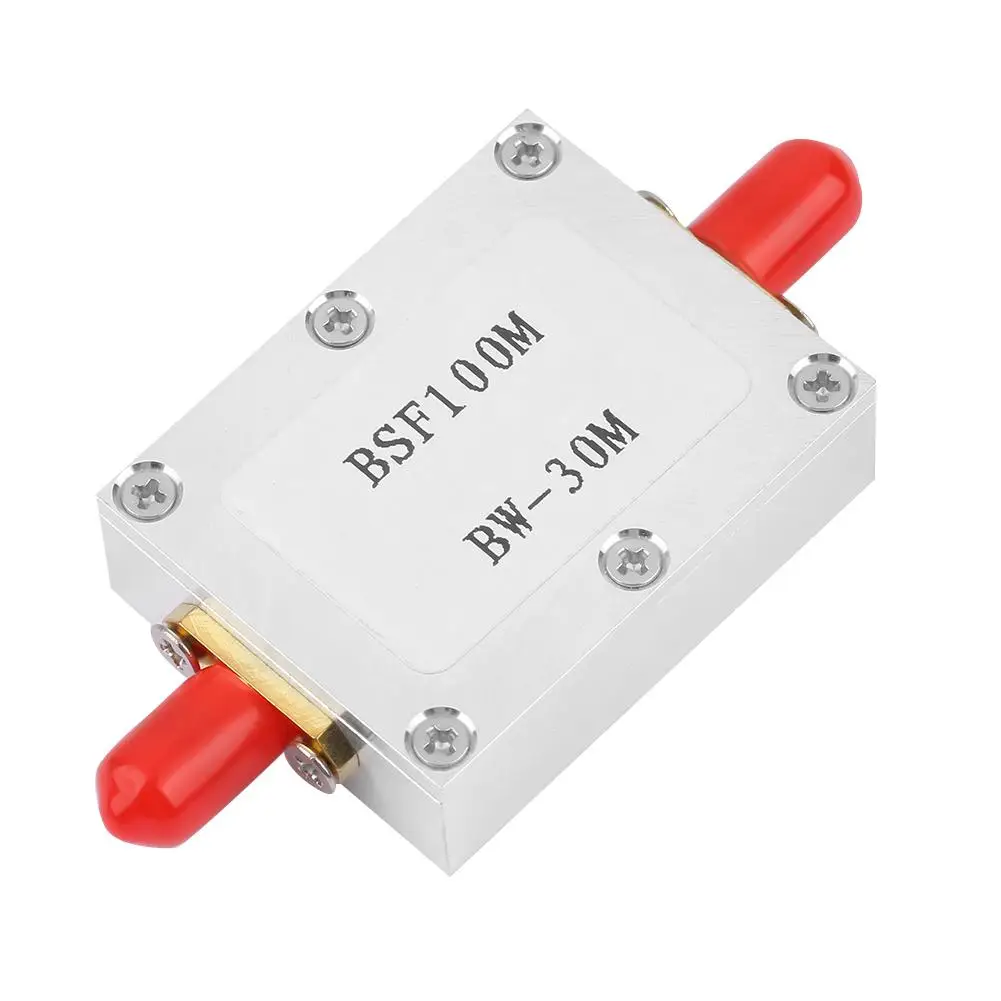

Band Stop Filter Passive Notch Filter

NZ$344.75 NZ$172.37
-
+

Features:

  • 100% brand new and high quality
  • The Operating frequency range is 1-3000mhz,Maximum input power is +30dBm(1W)
  • Stop band 76-120MHZ,Stopband inhibits >50dB 88-108m andanti-FM interference
  • Low insertion loss of passband,which is lower 1dB
  • CNC aluminum alloy housing, sturdy and durable

Specification:

Material: aluminum alloy, electronic components

Working frequency range: 1-3000MHZ

Characteristic impedance: 50 ohms

Stopband 76-120MHZ, anti-FM interference

Passband insertion loss <1dB

Maximum input power: +30dBm (1W)

Input and output interface: SMA_KE (outer screw inner hole)

Weight: Approx.30g/1.1oz



Package list:

1 x Band stop filter
