200W 15A DC8-60V TO 1-36V Adjustable Synchronous Buck Converter Step-down Module

Description:

  • 200W DC-DC high voltage power synchronous buck module
  • 8-60V wide voltage input, 1-36V stepless adjustable output
  • The maximum peak output current 15A
  • Perfect ultra-efficient circuit design up to 94% Low Ripple


Parameter:

  • Name: 200W adjustable synchronous buck module
  • Type: Non-isolated step-down module (BUCK)

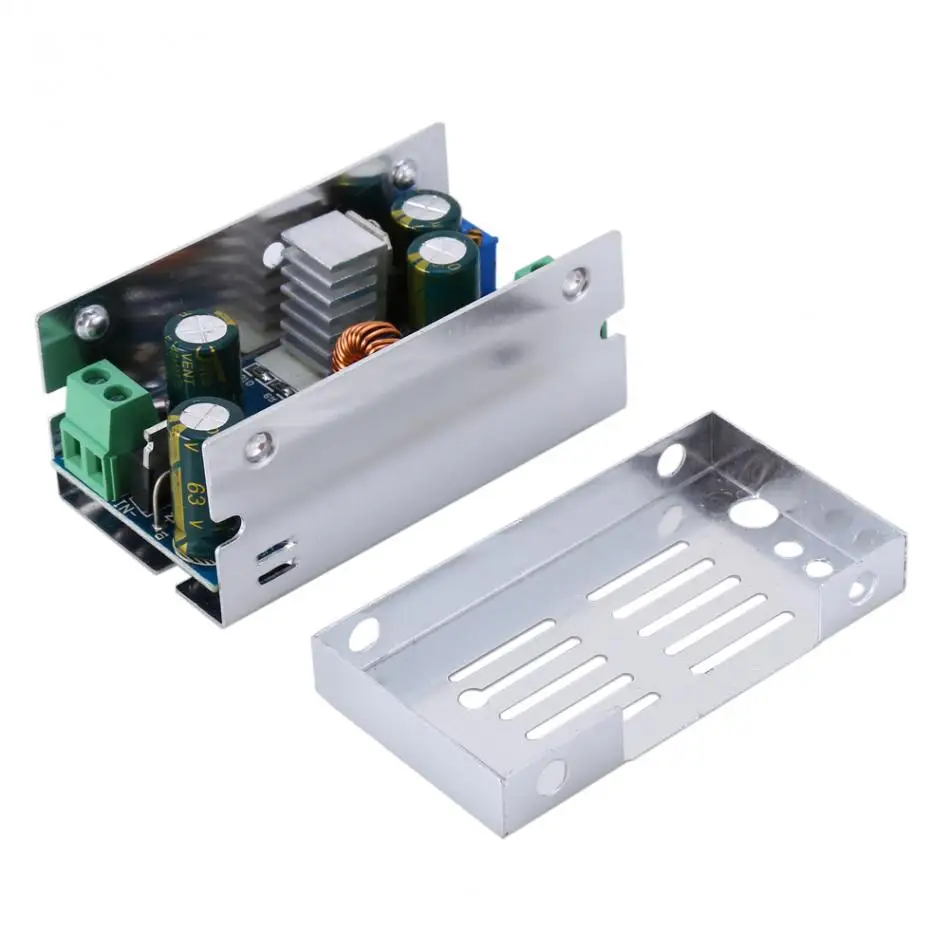

  • Aluminum housing Size: 70 x 38 x 31mm / 2.76"x1.5" x1.22"
  • Input voltage: 8-55V (limit 60V, please leave allowance)
  • Output voltage: 1-36V continuously adjustable (the default output 12V)
  • Output Current: Normal 10A , MAX15A
  • Output power: natural cooling ventilated long-term power 100W
  • To enhance heat dissipation up to 200W
  • Such as long working hours, please note left margin and make the heat rise
  • Operating temperature: -10 to +85 degrees
  • Operating frequency: 180KHz
  • Conversion efficiency: up to 94%
  • Overcurrent protection: Yes (the output current exceeds (15A) current maximum sample protection only)
  • Reverse polarity protection: (reverse does not burn)

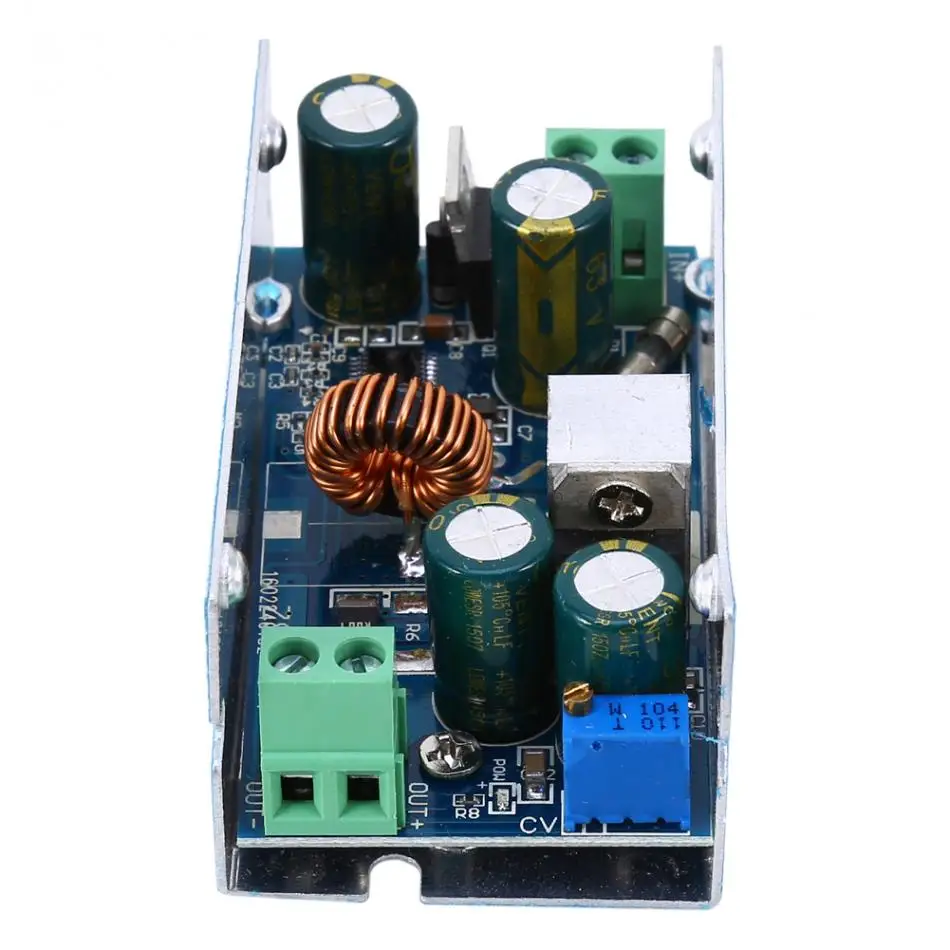

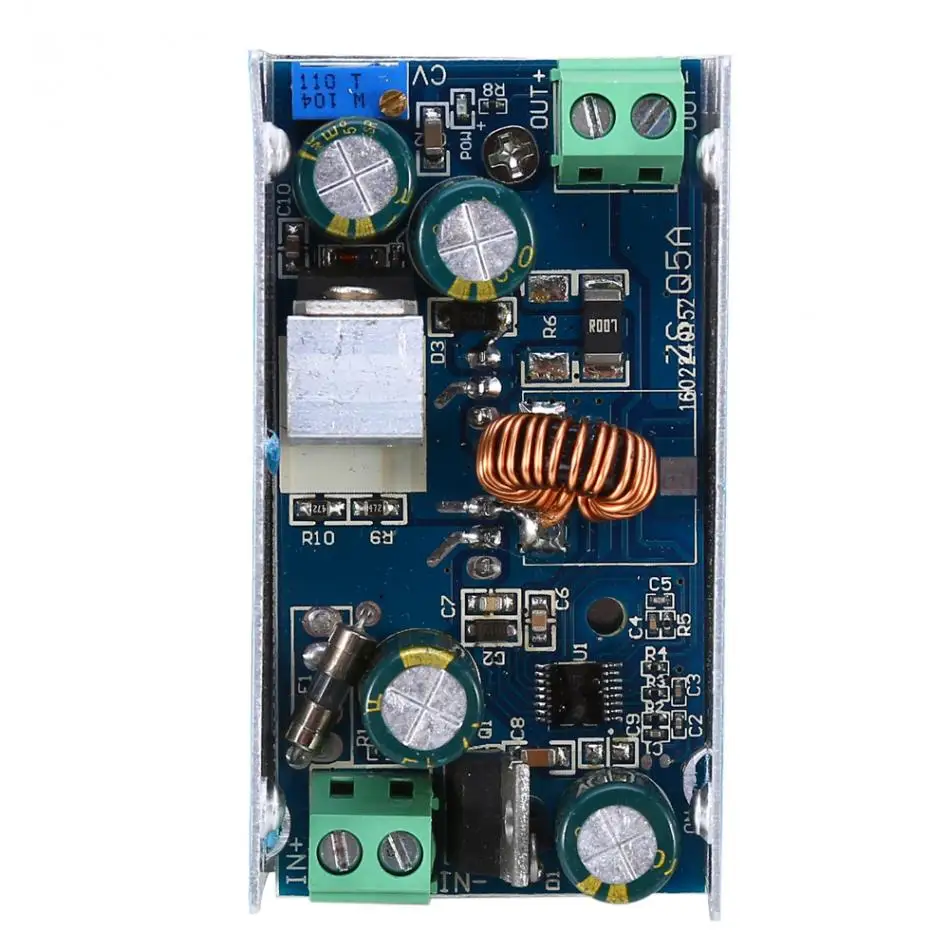

  • Wiring: high current terminals, solderless, IN + input is positive, IN- is the input negative, OUT + positive output, OUT- output negative



Package Includes:
1 x Module
