10pcsWire Thread Repair Insert

NZ$43.75 NZ$21.85
-
+

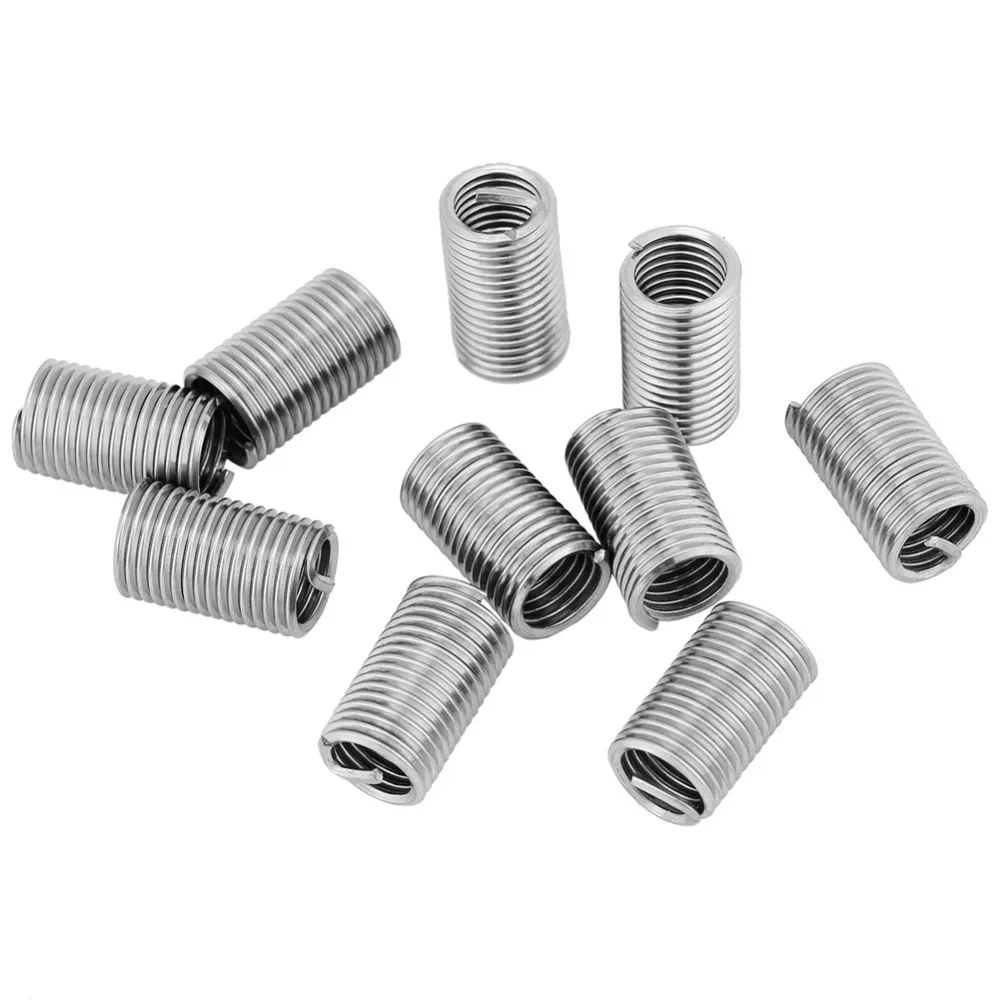

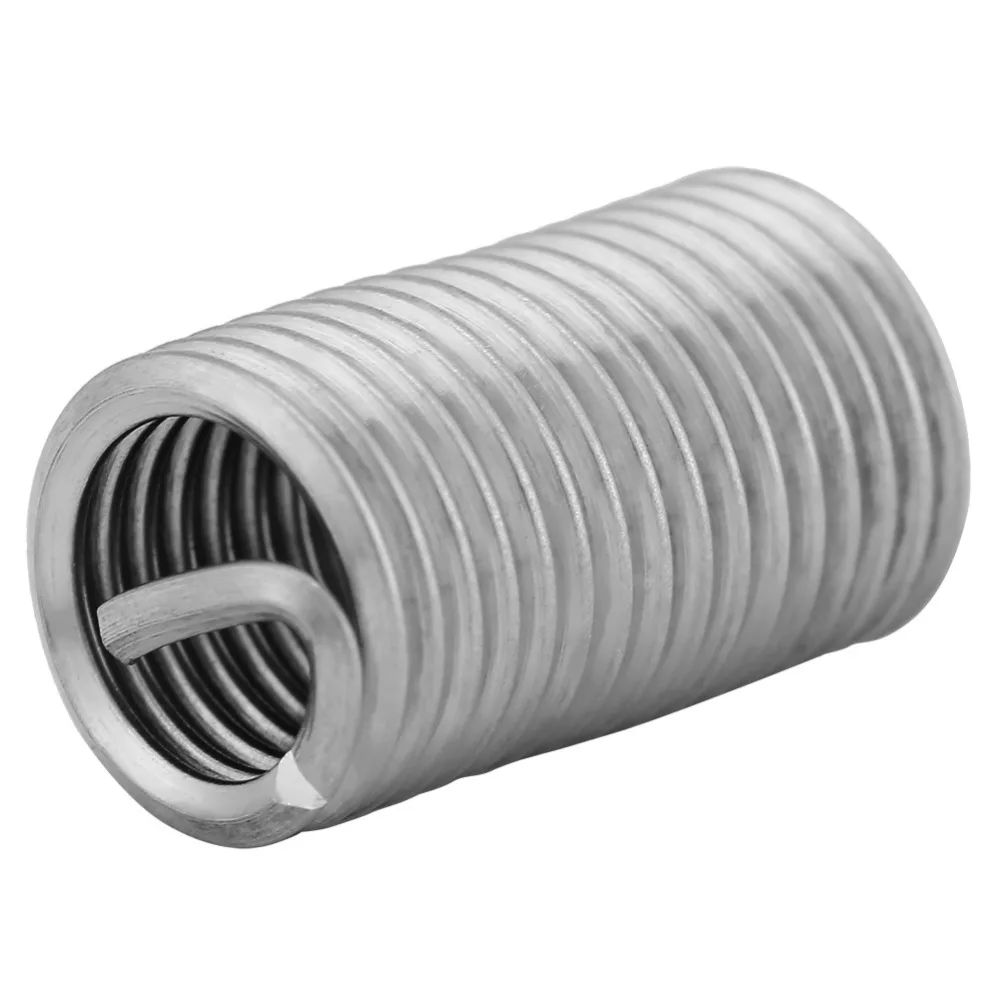

10pcs 304 Stainless Steel M8x1.25x3D Threaded Inserts Wire Screw Sleeve Inserts Thread Repairing Tools Kit Fastener Hardware

Descriptions:

The wire screw sleeve is a new type of fastening technology which can effectively improve the connection condition and greatly raise the reliability of screw connection.



Features:

  • Used in various low strength materials, which can improve the wear resistance of bolt connections and avoid the damage of thread.
  • Because of a certain elastic, can make the load on the thread  is more even, eliminate the screw and screw hole deviation between the pitch and tooth type, and can absorb vibration, thus increasing the screw thread connection strength and resistance to fatigue strength.
  • The locking type wire screw sleeve can lock the screw into the threaded hole, so that the screw is not loose when subjected to shock vibration, which is better than the normal locking device.
  • The hardness of the wire screw is higher than the screw, so it has little wear and tear in connection with screw, and can be used repeatedly.
  • Strengthen the connection strength and improve the connection condition, avoid sliding wire, wrong tooth phenomenon, and obtain excellent connection performance.
  • Used to the place that strong strength connection  without increasing the diameter of the screw hole
  • Wear resistant. Used for frequent disassembly, it can greatly improve the life of thread.
  • Anti-loose. Especially for the aircraft and other products requiring high insurance coefficients.
  • Easy to maintain. The damaged screw holes shall be put into the wire screw sleeve, which can be used again to avoid the possibility of damage to the workpiece.


Specifications:

Material: Stainless Steel

Quantity: 10

Weight: 32g

Size: M8 x 1.25 x 3D (inner diameter x thread pitch x length), 3D= 3 x inner diameter



Package Included:

10 x Wire Thread Repair Insert
